Appendix B: Images and Diagrams

This Appendix is intended to serve as a quick reference to the images used in both the online A2J Guided Interview® interface and A2J Author® interface. You will find images for each type of Avatar that can be used in an interview and an image of the default end graphic. In addition, you will find a detailed diagram of each of the “Tabs” in A2J Author®: Interview, Variables, Steps, Questions, Reports, Preview, and Upload. Diagrams of certain pop-up windows are also provided, including the Variables Information window, and each of the Tabs in the Question Design window.




Figure B1: Female and Male Avatar Guide Selections


End User Avatars

Figure B2: Female and Male Avatar End User Selections

End Graphic



Appendix B- Courthouse Preview.png

Figure B3: The standard A2J Guided Interview Courthouse image.

Figure B4: Alternative End Graphic option

Interviews Tab


Figure B5: The Interviews Tab (a.k.a. the Startup Screen)


About Tab


About Tab annotated.png

Figure B6: About Tab, screenshot 1


Figure B7: About Tab, gif showing other meta data features in the About Tab


Variables Tab

Figure B8: Main Variables Tab


Figure B9: Variable Information Pop-Out Window


Steps Tab

Figure B10: The Steps Tab


Pages Tab

Figure B11: Pages Tab; this section is new in version 6.0. It is similar to what existed on the Questions Tab in version 4.0.



Figure B12: The Map (called a Flowchart in A2J Author 4.0)



Question Design Window

The version 6.0 question design window is no longer broken into separate tabs. It is all contained in one pop-up window. The following screenshots will show you the various components of the question design window. To access them in A2J Author, you simply need to double click on the question name from the Pages Tab or Map Tab or click on the question icon on the Map Tab.

Figure B13: Question Design Window, screenshot 1


Figure B14: Question Design Window. If you continue scrolling in the question design window, you can see additional features, including the Learn More Help, Nested Repeat Loops, the Fields Section, the Buttons Section, and the Advanced Logic Section.



Figure B15: Question Design Window. Logic can be inserted to run before the question is asked to the end user or after the end user clicks the “Continue” button. If it is run before the question is displayed and the action is to skip the question, that question will not be displayed to the end user. If it is run after the user presses “Continue,” then it will be shown to the user every time.




Figure B16: Files Tab


All Logic Tab


Figure B17: All Logic Tab


All Text Tab




Figure B19: All Text Tab


Report Tab


Figure B19: The Report Tab


Figure B20: Sample Full Report

Figure B21: Sample Readability Score at the bottom of a Full Report

Figure B22: Sample Audio Transcript


Preview Tab


Figure B23: Preview Mode: How the A2J Guided Interview looks to the end user.

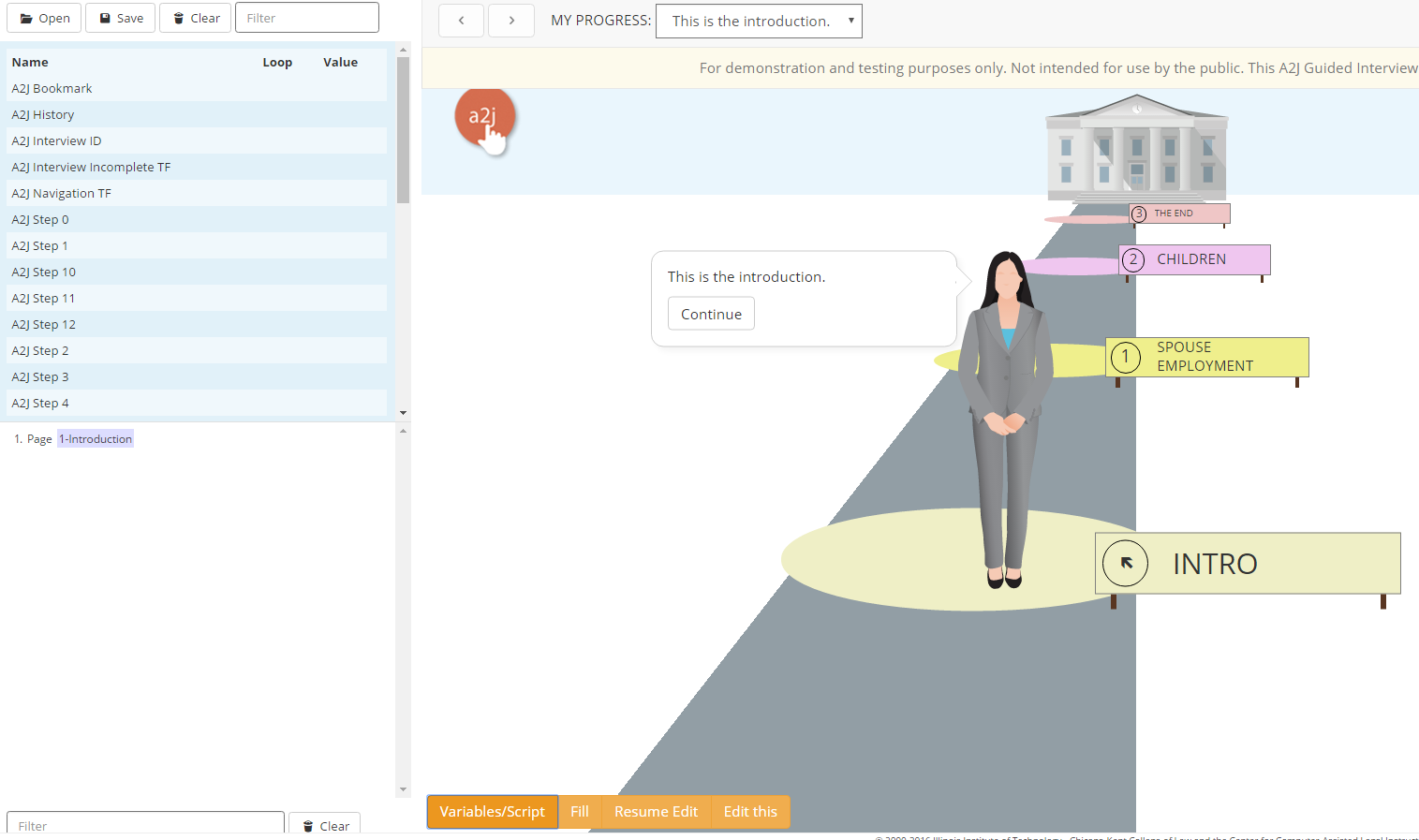

Figure B24: Preview Mode with Scripting Panel open. Keep the scripting panel (debug panel) open while previewing to monitor whether the variables are collecting the values entered in the fields and the logic is working correctly. You can open the scripting panel by clicking on the variables/script button at the bottom of the screen.


Publish Tab


 Figure B25: The Publish Tab
